SPECIFICATIONS

Model : Chopin

Color : Black, Silver
Case Type : Mini-ITX Tower
Material : Aluminium, SECC
M/B Compatibility : Mini-ITX (Max:6.7" x 6.7")
Expansion Slots : N/A
Front Ports : 2 x USB 3.0
HD Audio

External Drive Bays : N/A
Internal Drive Bays : 2 x 2.5"
Thermal Solution Compatibility : CPU Heatsink Compatible
- CPU die surface to side panel height:

43mm Maximum
- Motherboard to side panel height:

51mm Maximum

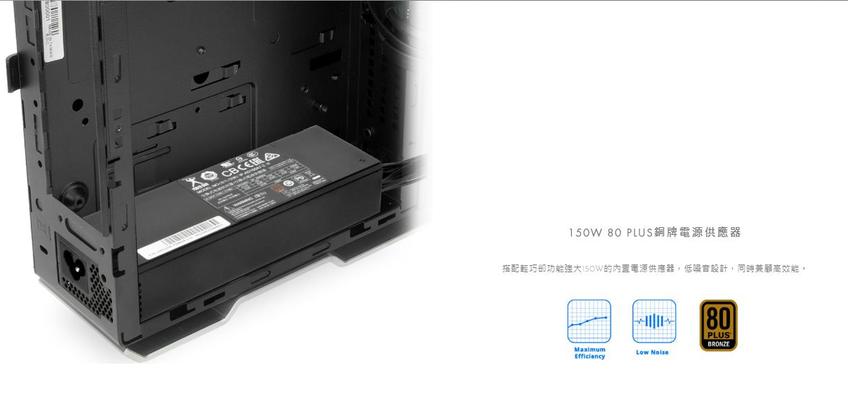

Power Supply Compatibility : 150W Internal PSU Included
Product Dimension(H x W x D) : 244mm x 84mm x 217mm

9.6" x 3.3" x 8.6"
Package Dimension(H x W x D) : 276mm x 120mm x 275mm

10.9" x 4.7" x 10.8"
Net Weight : 2.2kg/4.8lb
Gross Weight : 2.5kg/5.5lb

* In Win products comply with RoHS regulations
* Specifications may vary based on different regions
