 Phanteks>ENTHOO Series>ENTHOO EVOLV MATX TEMPERED GLASS

SPECIFICATIONS

                                     SATIN BLACK                GALAXY SILVER               ANTHRACITE GRAY

​Model NO :               PH-ES314ETG_BK           PH-ES314ETG_GS             PH-ES314ETG_AG

UPC Code :                 886523300298                  886523300397                     886523300380

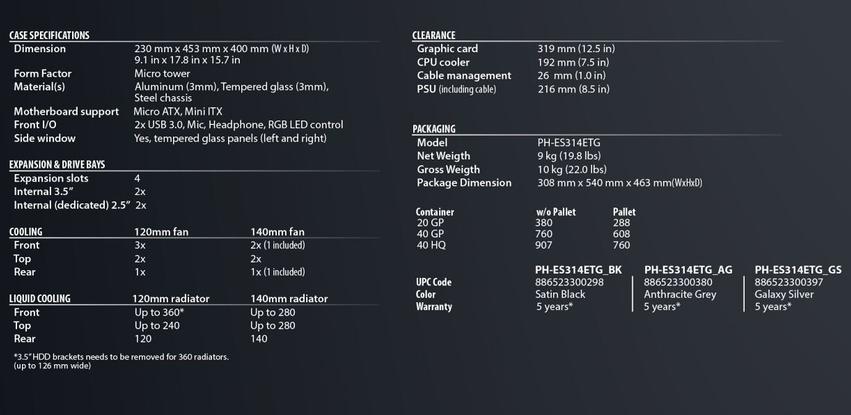

Case Specifications

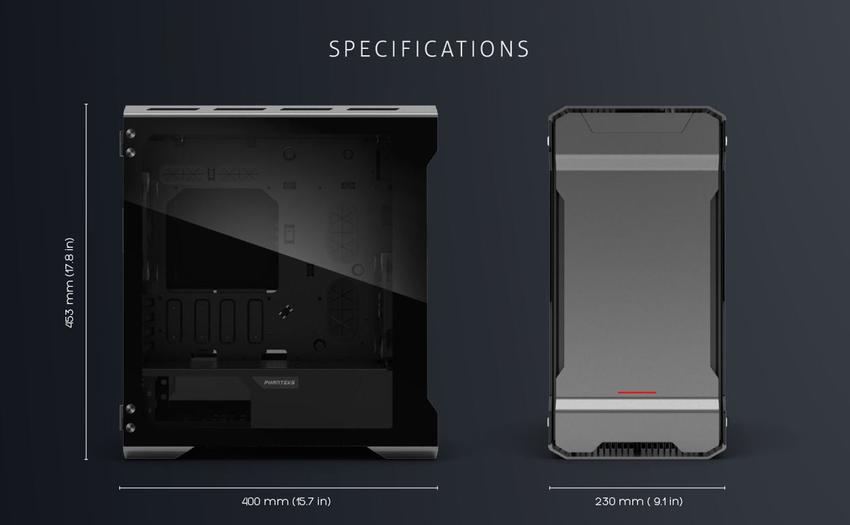

Dimension                                       230 mm x 453 mm x 400 mm (W x H x D)
                                                        9.1 x 17.8 x 15.7 in
Form Factor                                    Micro Tower Chassis
Material(s)                                       Aluminum(3mm), Tempered Glass(3mm), Steel Chassis
Motherboard Support                      uATX, mITX
Front I/O                                          2x USB 3.0, Mic, Headphone, RGB control
Side Window                                   Yes,tempered glass panels (left and right)VIEW FULL SPECS


​VIEW FULL SPECS

Overview​​

Features:

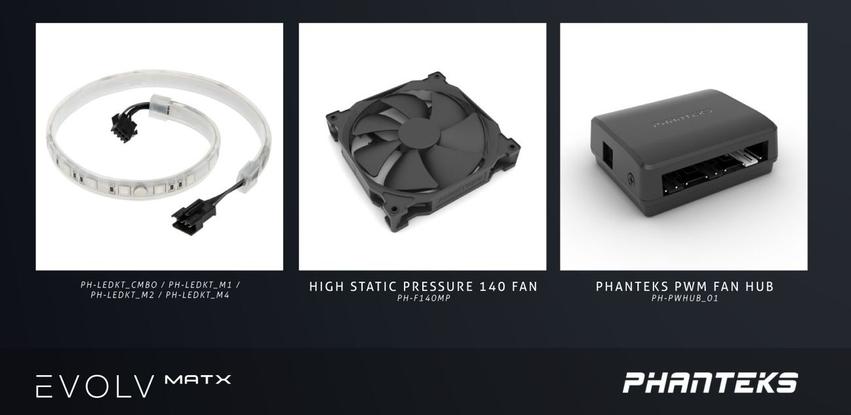

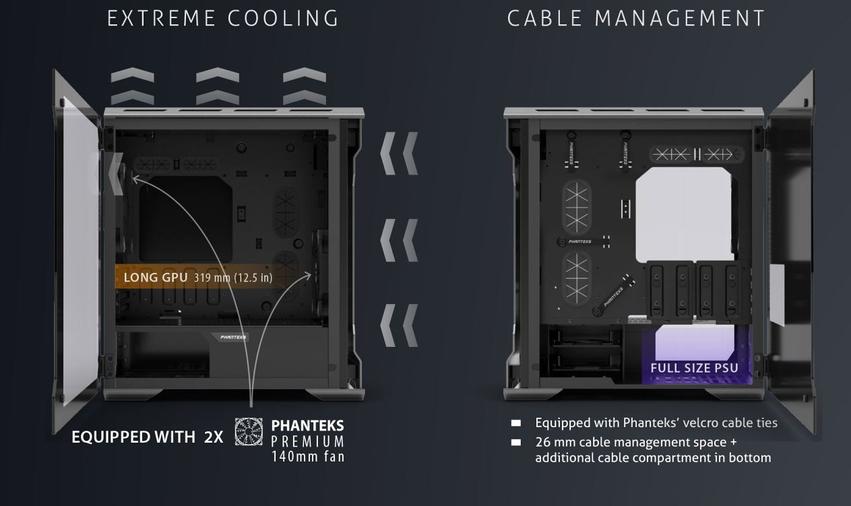

Enthoo Evolv includes 1 x 140mm fan in front and 1 x 140mm fan in the rear. Ability to upgrade to additional fans is possible. All fans included are Phanteks new redesigned and better performing premium fans.

Appearance:
Full 3mm aluminum exterior
Available in: Black / Gray / Silver
Clean interior - Midplate hiding PSU cables and HDDs

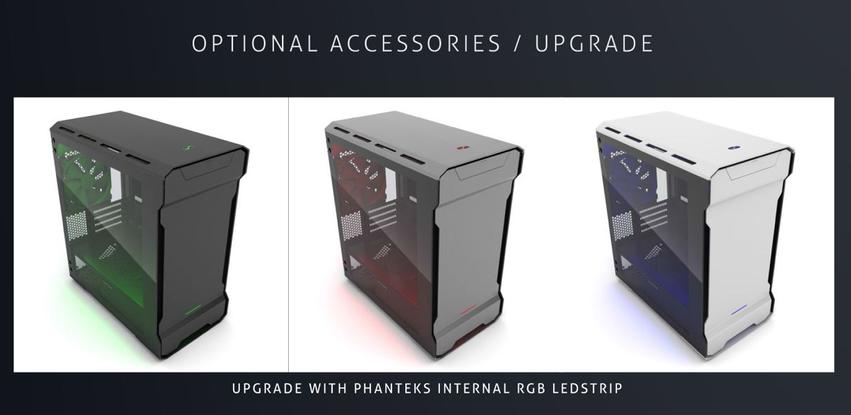

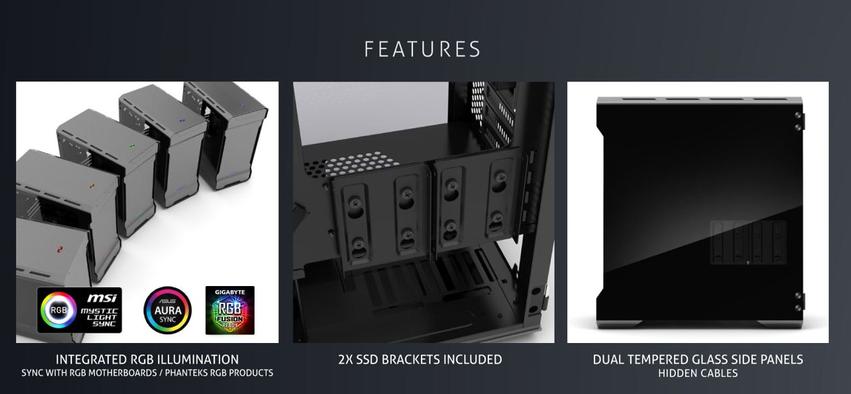

RGB LED Illumination

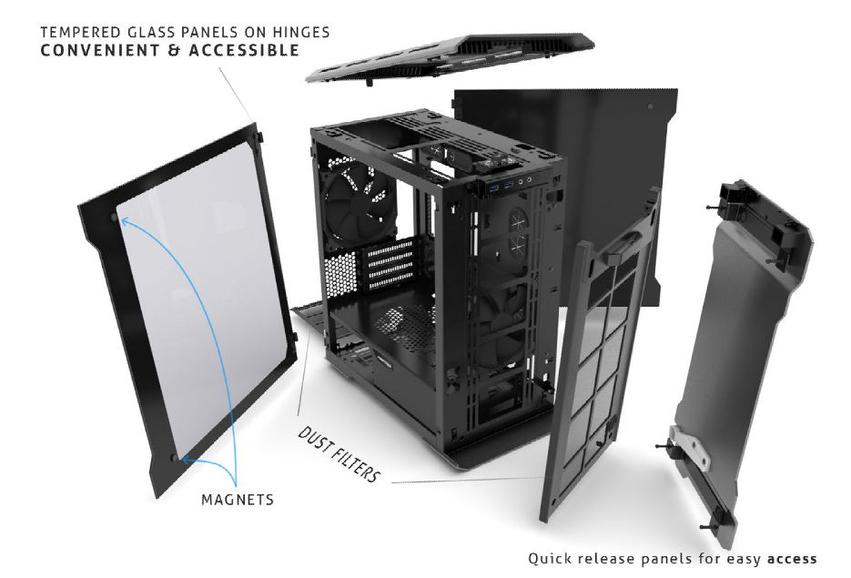

Dual Tempered Glass panels

ENTHOO EVOLV MATX TEMPERED GLASS
PRODUCT CODE : PH-ES314ETG

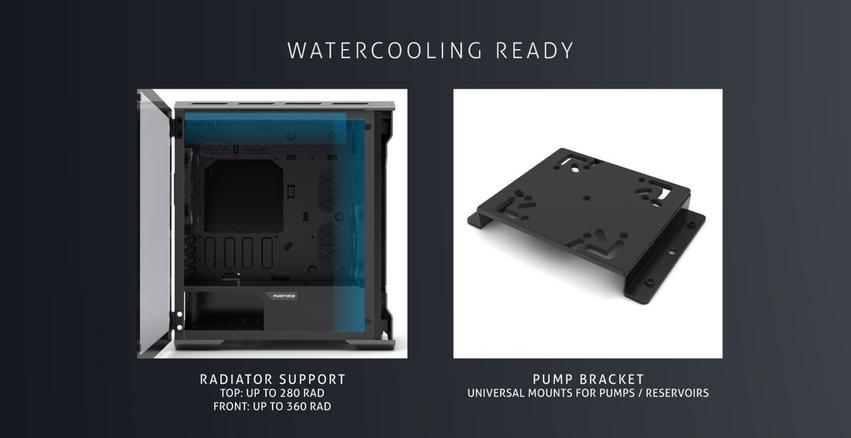

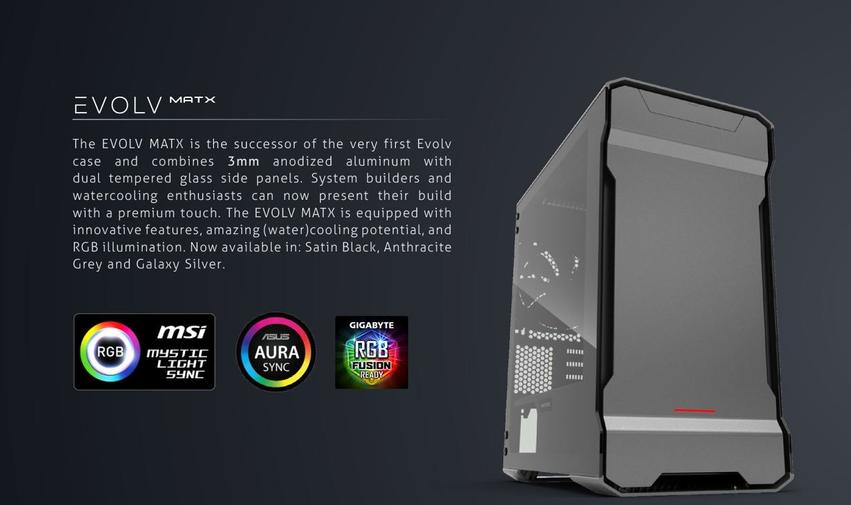

The EVOLV MATX is the successor of the very first Evolv case and combines 3mm anodized aluminum with dual tempered glass side panels. System builders and watercooling enthusiasts can now present their build with a premium touch. The EVOLV MATX is equipped with innovative features, amazing (water)cooling potential, and RGB illumination. Now available in: Satin Black, Anthracite Grey and Galaxy Silver.
