Socket compatibility :                                            Intel Xeon LGA3647


Height  (without fan) :                                            134 mm

Width   (without fan) :                                             95 mm

Depth   (without fan) :                                             95 mm

Weight (without fan) :                                             584 g


Height  (with fan) :                                                 134 mm

Width   (with fan) :                                                  95 mm

Depth   (with fan) :                                                 120 mm

Weight (with fan/s) :                                               769 g


Material :                                                               Copper (base and heat-pipes), aluminium (cooling fins),

                                                                              soldered joints & nickel plating


Fan compatibility :                                                 2x 92x92x25mm


Scope of delivery :                                                ● 2x NF-A9 PWM premium fan
                                                                              ● Y-split cable
                                                                              ● NT-H1 high-grade thermal compound (pre-applied)
                                                                              ● SecuFirm2™ mounting kit for LGA3647
                                                                              ● Noctua metal case-badge


Warranty :                                                              6 Years

TECHNOLOGY CO. LTD.

Cooler Specification

DX series for Intel Xeon
First introduced in 2008, Noctua’s DX line CPU coolers have become a standard choice when it comes to quiet, premium grade air cooling solutions for Intel Xeon processors. Thanks to their superior acoustic efficiency, they are ideal for workstations and servers that run in noise sensitive environments (e.g. audio/video production, content creation, engineering, etc.).


Customised for LGA3647
The new DX-3647 line coolers are dedicated, customised solutions for Intel’s professional LGA3647 platform, which makes them an ideal fit for both Skylake-SP based Xeon Scalable CPUs (Platinum, Gold, Silver or Bronze, Purley series) and Xeon-Phi processors (code names Knight’s Landing or Knight’s Mill).


Enlarged contact surface
At 70x56mm, the heatsink’s copper contact surface is more than double the size of the standard model. Tailored to fit the enormous integrated heat-spreaders (IHS) of Intel’s LGA3647-based processors, this customised design allows for an optimal heat flow from the CPU over the base to the heatpipes and on to the cooling fins.


Supports square and narrow type LGA3647 sockets
The heatsink’s SecuFirm2™ mounting system includes two sets of brackets in order to support both square and narrow type LGA3647 sockets. Thanks to pre-installed mounting screws and the included processor clips (square type and narrow type without Omni-Path fabric connector, with fabric connector on request), the installation procedure is easy, quick and secure.


Compact 92mm size for best compatibility
Thanks to its compact footprint (95x95mm with center fan only, second fan can be installed on either side depending on available space) and a total height of only 134mm, the NH-D9 DX-3647 4U provides excellent PCIe compatibility and is small enough to fit most 4U size rack-mount enclosures.

Dual NF-A9 PWM fans
The NH-D9 DX-3647 4U is equipped with two of Noctua’s award-winning NF-A9 92mm fans in their high-speed 2500rpm HS-PWM variant. This push/pull dual fan configuration makes it possible to achieve a level of cooling performance that is remarkable for such a compact cooler and comes close to the bigger NH-U12S DX-3647.


PWM support and y-cable
The NF-A9 premium fans supplied with the NH-D9 DX-3647 4U support PWM for convenient automatic speed control through the motherboard, which allows them to run near silent at lighter loads and to speed up only when necessary. The supplied y-cable makes it possible to power and control both fans simultaneously from a single motherboard fan header.


Pre-applied NT-H1 thermal compound
Noctua’s much-acclaimed NT-H1 is a pro-grade TIM solution that provides minimum thermal resistance and outstanding long-term stability. Having the paste pre-applied to the heatsink base ensures optimal bond-line thickness and saves precious time in installation. Ideal for system integrators!


6-year manufacturer’s warranty
Noctua products are renowned for their impeccable quality and outstanding longevity. True to this legacy, the NH-D9 DX-3647 4U heatsink is built to last, and like all Noctua fans, the supplied NF-A9 units feature an MTTF rating of more than 150,000 hours. The entire package comes with a full 6-year manufacturer’s warranty.

Installation Manual (PDF)

Details


​​Model :                                                                  2x Noctua NF-A9 HS-PWM


Bearing :                                                               SSO2


Max. Rotational Speed (+/- 10%) :                        2500 RPM


Min. Rotational Speed (PWM, +/-20%) :               400 RPM


Max. Airflow :                                                        96,3 m³/h


Max. Acoustical Noise :                                         30,6 dB(A)


Input Power :                                                         1,68 W


Voltage Range :                                                    12 V


MTTF :                                                                  > 150.000 h


Fan Specification

Information Sheet (PDF)

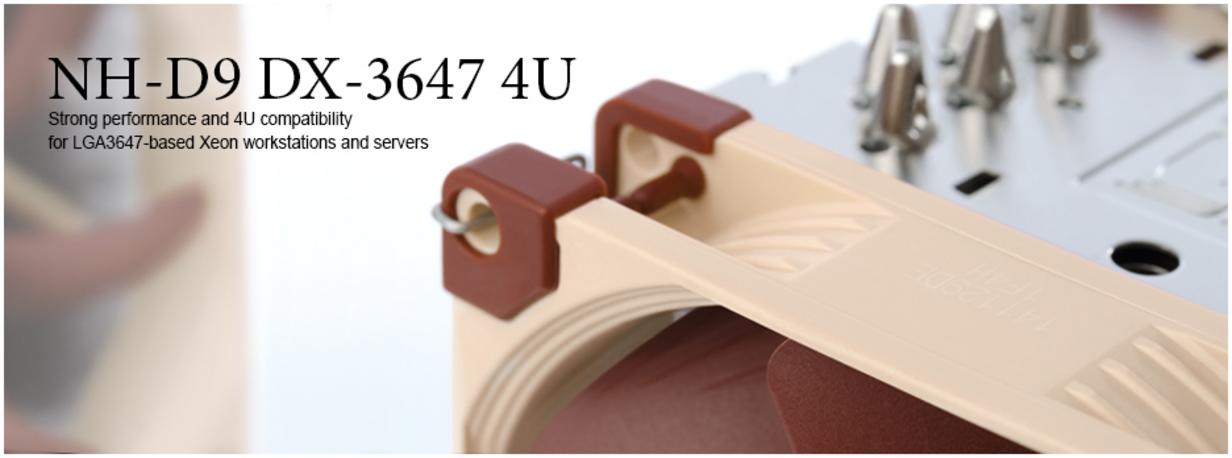

Noctua’s DX line CPU coolers have become a default choice in premium grade quiet cooling solutions for Intel Xeon processors. The NH-D9 DX-3647 4U features a larger, custom-designed contact surface and supports both square and narrow type LGA3647 platforms. Based on the proven, 92mm size NH-D9L heatsink and equipped with two of Noctua’s award-winning, PWM controlled NF-A9 92mm fans (high-efficiency 2500rpm version), it combines strong performance with excellent compatibility for 4U systems and other space-restricted applications. Topped off with the professional SecuFirm2™ mounting system and pre-applied NT-H1 thermal compound, the NH-D9 DX-3647 4U forms a complete premium quality package for quietly cooling LGA3647 based Xeon workstations and servers.



** Please note that the NH-D9 DX-3647 4U is a dedicated version for the Intel LGA3647 socket. Due to its customised

    larger base, it cannot be used on any other sockets and is incompatible with Noctua’s standard mounting kits.
